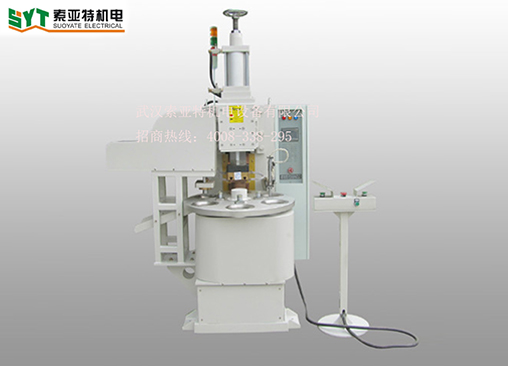

中頻六工位自動轉盤焊接專機

設備由加完料后自動上下料采用6工件轉動分割器，焊接強度是本材料的同樣強度。

性能特點

1.       主機控制系統：采用觸摸屏作為人機界面，由PLC作為整機程序控制系統，負責讀取數據，處理控制信號，確保整機動作順序有效，更好的實現了人機對話。

2.       旋轉系統：采用轉動分割器，分6個工位，第1工位、分別為上料主工件位置；第2工位、檢測上料件零件工位；第3工位、上料次件工位；第4工位、檢測上料件零件工位；；第5工位、焊接工位；第6工位、焊接完件卸料工位。

3.       焊接系統：采用自研發的智能型微電腦控制系統，來電電壓波動時焊接電流自動補償，確保焊接性能穩定。

4.       夾緊系統：采用機械原理，氣動直動式夾緊裝置，強度高。

Features

1.      Main Engine Control System:Adopt the touch screen as the human-machine interface, Choose the PLC as program control system of the whole machine.PLC is in charge of reading data,processing and control signals to ensure the validity of execution orders of the whole machine.Better achieve human-machine conversation.

3.      Welding System:Adopt the self-developed intelligent microcomputer control system.lt will automatically compensate the welding current when the voltage fluctuates to ensure the stable performance of welding.

4.      Clampling System:Adopt the mechanical principle and pneumatic direct-acting clamping device with high intensity.
