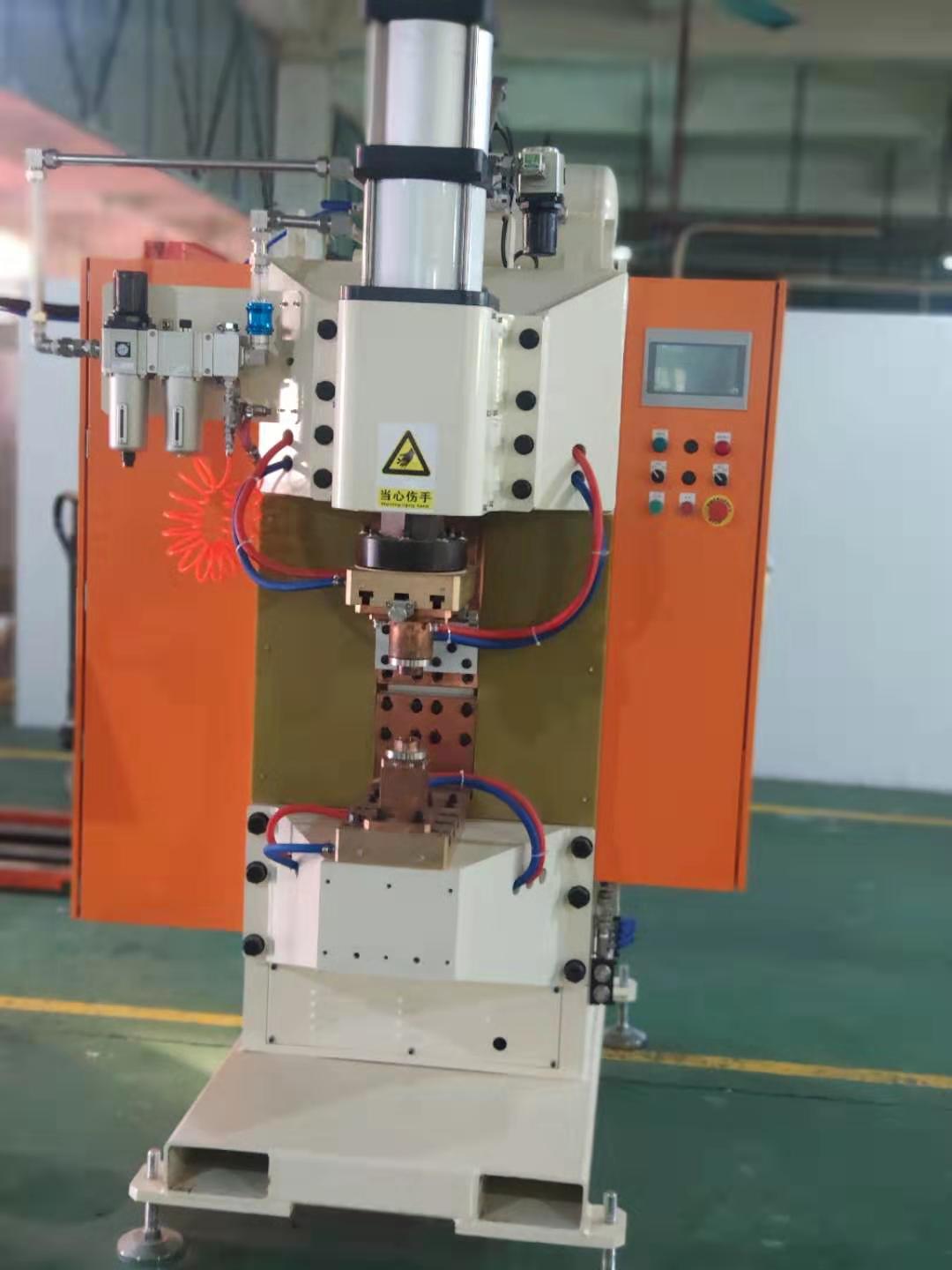

中頻逆變式點焊機系列

SYT-MD-40

產品概述

該系列焊機是一夽先進的焊接設備。應用廣泛，焊接變壓器體積小而輸出能量大，三相交流電經整流后轉換成為直流，再經由IGBT組成的逆變電路逆變成為中頻1000HZ方波接入焊接變壓器的初級，經焊接變壓器降壓整流成為脈動很小的直流電供給電極對工件進行焊接。逆變器通過反饋回來初級或者次級焊接電流進行調整IGBT的占空比，從而達到焊接過程恒流的效果。

Description

Medium frequency inverter spot welding machine is an　advanced　welding　machine　wide　application．The　welding　transformer　is　in　small　size　but　the　output　energy　is　large．Three－phaseＡＣwill　be　converted intoDCafter　being　rectfied。Then theDC will be converted into medium frequency1000Hz square wave to be connected to　primary　welding　transformer　through　the inverter　circuit　which　is　composed　of　LGBT．The?。停啤quare　wave　will　become　small　pulseＤＣto　the　electrode　for　welding　work　Piece　through　the　depressurization　and　rectifying process in the　welding　transformer．The inverter　will　adjust　the duty　ratio of　IGBT　through　the feedback　primary　or　secondary　current so as to achieve current of the welding process．

性能特點

１.    二次焊接回路中流過的電流是直流，因此由于深入焊接工件中不同的次級長度而產生的二次回路中的感抗對焊接電流的影響大大減小。

２.    三相平衡負載，減少對供電系統功率要求，功率因素接近１，無電感分量，無須調整功率因素。

３.    消除對供電電源的污染，屬綠色焊接，不必單獨提供電源可以和機器人焊接工裝控制系統在鏈接使用。

４.    減少電源消耗，節能降耗，還能減少電纜的需要和花費及大量的維護成本。

５.    焊接變壓器的質量大大減輕，輕便快捷，只有交流變壓器的質量和體積的１／３，適用于機器人焊接系統。

６.    提高熱量輸入效率，焊接變壓器輸出的是直流電壓，沒有電感的煩擾，純直流電路沒有過零的缺點，熱量的效率大大提高。

７.    智能型數字全閉環控制，焊接控制電流更精確，調整精度和監視精度比AC系統高２０倍?？梢詫?duì)逆變器和變壓器進行保護。

８.    增加焊接工藝的穩定性，直流焊接的工藝性好，焊接參數的可適應范圍寬，次級電流可以真正保持恒流，比交流要有更廣泛使用的前景。

９.    數字化控制更加提高電流控制和測量精度，焊接時間精度為毫秒，可以對焊接的時間任意控制。

１０. 可以焊接鋁和鍍鋅金屬等材料，焊接結果良好。

１１. 尤其適合于三層板焊接、非常薄的材料的焊接以及精密焊接的要求。

１２. 精密逆變直流電流電阻焊，逆變頻率更高，電流控制更精確。

Features

１.    The current in secondary welding loop is DC.Dramatically reduce the impact to the welding current due to　the　inductive　reactance　in　secondary　loop　when　conducting　welding　to　the　work　piece．

２.    Three-phase　balanced　load　can reduce the requirement to the power supply system.The power factr is close to1.No electrical inductance,so no need to adjust the power factor.

３.    Eradicate the contamination to the power supply. Lt is a kind of environmentally friendly welding method.No need to provide power independently.lt is able to be used together with robotic welding ssystem.

４.    Reduce power consumption,energy saving.Reduce the requirement of cables and lots of maintenance cost.

５.    The weight of transformer is reduced greatly .lt is light and convenient.The weight and size of the MF transformer is only1/3 of theAC type transformer. Suitable for robot welding system.

６.  lncrease the heat input efficiency.The output of welding transformer isDC voltage,without the disturbance of inductance.Pure DC has no defect of zero passage.The efficiency of heat is enhanced dramatically.

７.  Lntelligent digital full-closed loop control.The welding control current will be more precise.The adjustment precision and monitoring precision is20 times higher than theAC system.Be able to protect the inverter and transformer.

８.  Lncrease the stability of the welding technology.DCwelding technology is good and the welding parameters are of wide application.The secondary current could achieve actual constant current.Have better using prospect thanAC.

９.   Digital control can better improve the current control and measurement accuracy.The welding time precision is ms which can help you control the welding time at random.

１０.         Be able to weld aluminum and galvanized metal with good weling quality.

１１.         Especially suitable for welding three-layer metal sheet or very thin material and precision welding requirement.

１２.         Precision inverterDCresistance welding.Higher inverter frequency,more accurate control of the current.

適用范圍

特別適用于銅、鋁、鎳、鉬、鎢、錳、金、銀及其他有色金屬的精密連接，廣 泛的應用于電池廠電光源廠，汽車，醫療器械，光電通訊廠，微型馬達廠以及客戶要求比較高的高溫漆包線/特細漆包線(最小可以達到0.02mm)的貼片電感，線圈，金屬線的焊接，鎳杯，可伐絲焊接，CCFL方面的焊接，保險絲，燈絲的焊接等。

Application

Especially suitable for　welding　metals　such　as　copper,aluminum，nickel,molybdenum,tungsten,manganese,gold,silver and　other　non ferrous metals and precious metals Precision.Widely applied to welding battery,lighting electric resource automobile,medical apparatus and instruments,photoelectric communicaton,micro motor as well as requested  chip inductor with high temperature enameled round wire/extra fine　wire（minimum　size　can　be　０.０２mm），wire　rope，metal　wire,nickel　cup,can　cutting　wire　and　welding,ＣＣＦＬfield，fuse，lamp　filament．

Part　of　Welding　Sample
